Shallow Water Multiple Elimination (SWME)

SWME is a workflow that involves a prediction phase and a subtraction phase.

This predicts the water-bottom related multiples (WBRM) with a model-based method while, taking advantage of the data-driven SRME method to remove residual surface-related multiples (SRM). The input data with both primaries and multiples are shifted and stacked according to the water bottom Green’s functions to form the multiple model. The resulting multiples are of accurate amplitudes and phase for all frequencies because no additional source wavelet is convolved.

This method takes advantage of both the model-based method and the conventional SRME to attenuate multiples of broadband data. The Shallow-Water Multiple Elimination (SWME) method can predict the multiple model accurately for all frequencies at an acceptable cost. The input data is time-shifted according to the two-way traveltime calculated by a ray-tracing based approach. Then the stacking is performed within the aperture where no refraction occurs. The resulting multiple models from both the source and receiver sides preserve the input frequency spectrum very well. Simultaneously subtracting both models from the input data ensures that no high-order multiple term is solved explicitly, and importantly, reduces the risk of primary damage during the adaptive subtraction.



Near Cable Shot QCs

Move the Slider Left or Right to see before and after

Got it
Near Cable Input Shots
Near Cable: Source Side SWME Model
Near Cable
Near Cable: Input Shots


Example Set 2:

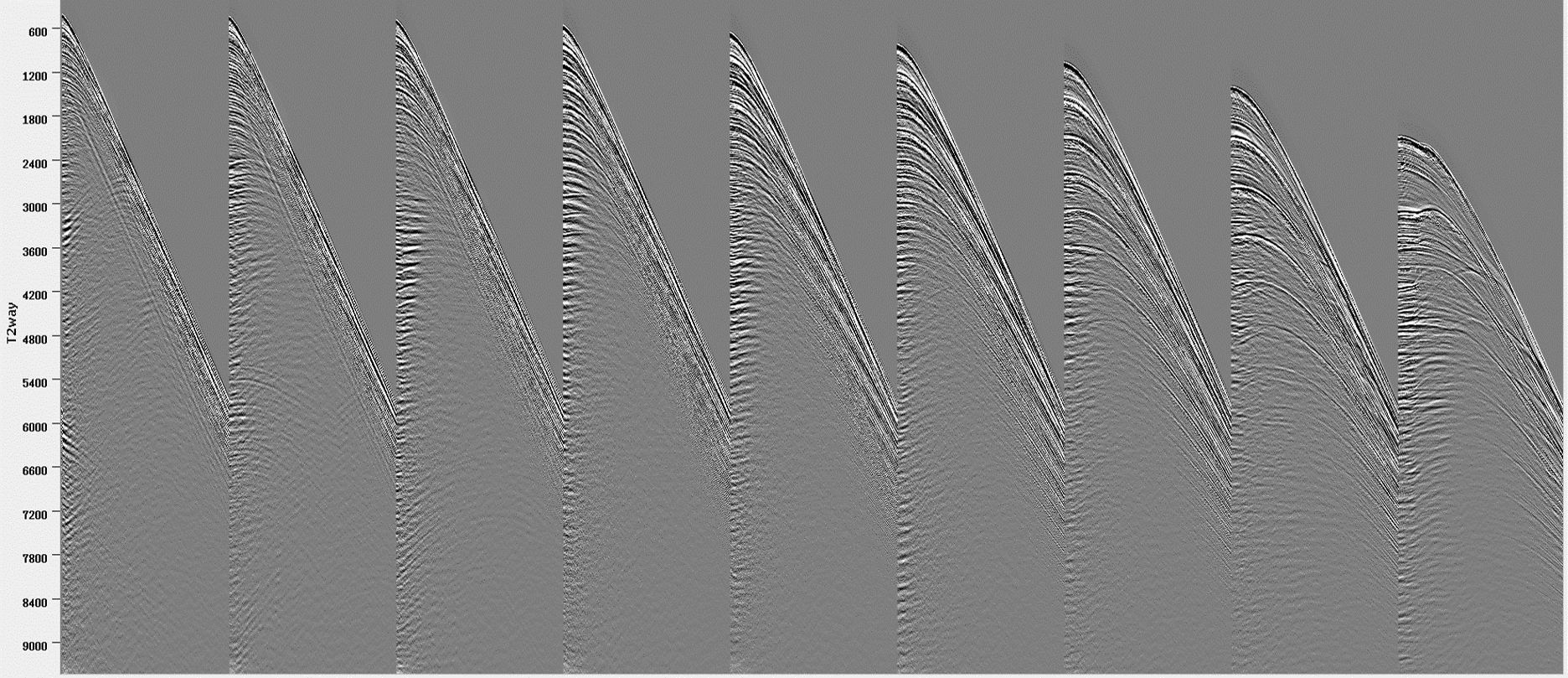

Near Cable Receiver Side SWME Model Near Cable: Receiver Side SWME Model

Far Cable Shot QCs

Move the Slider Left or Right
to Visualize the Images

Got it
Far Cable Source Side SWME Model
Far Cable: Source Side SWME Model
Far Cable
Far Cable: Input Shots
Far Cable Receiver Side SWME Model Far Cable: Receiver Side SWME Model
