Image-Guided Tomography (IGT)

Image Guided High Resolution Tomography using Offset-Dependent Picking

Image-Guided Tomography (IGT) is an approach which yields high-resolution velocity updates that are more geologically plausible near faults and layering.

IGT is an approach to generating high-resolution velocity models through tomography which limits the impact of simplifications introduced by traditional tomography.

As a result timely, accurate, and geologically reasonable models can be produced. First, offset-dependent picking can be used to track events in gathers better than curvature-based picking, particularly in areas of complex geology and anisotropy. This implementation can allow quicker and simpler gather flattening and reveals fine detail in models.

The application of image-guided interpolation as a preconditioning step within the inversion process leads to updates which automatically respect geological structures observed in stacked images. When implemented within a current tomography flow, these refinements make generation of high-resolution velocity models reasonable without trade-offs in computation time or accuracy.

Move the Slider Left or Right
to Visualize the Images

Got it

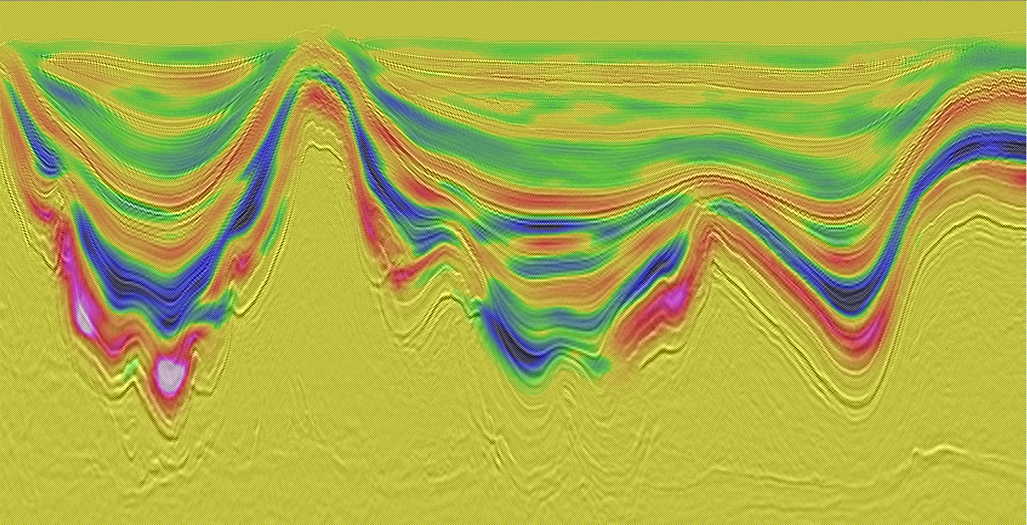

High Resolution Tomography with Image Guided Interpolation

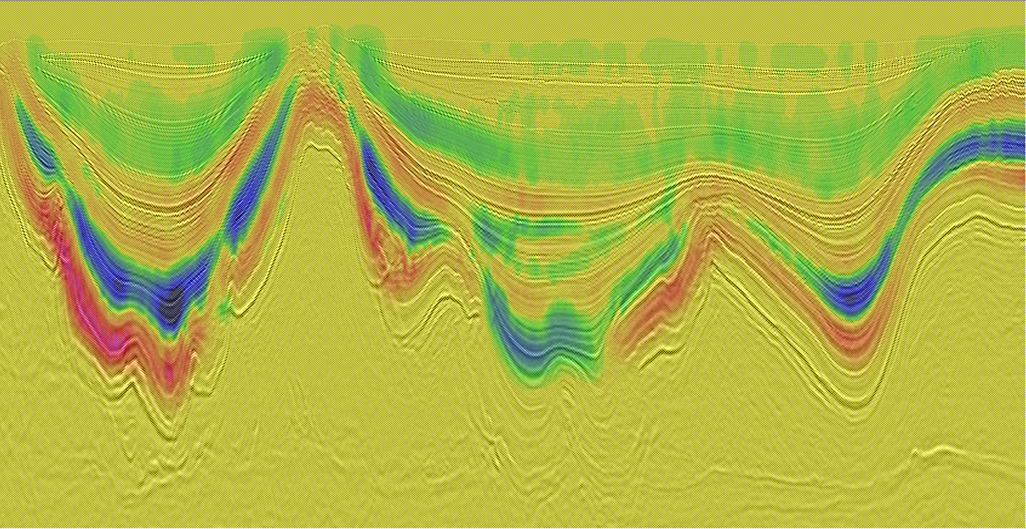

Conventional tomography with dipping Laplacian interpolation

Move the Slider Left or Right
to Visualize the Images

Got it
Crossline section of Hoop Fault Final Velocity
Crossline section of Hoop Fault Initial Velocity
