Multiple imaging is shot-based migration (like shot-based RTM and WEM).

For primary migration, the source side is point source and receiver side is primary data. For multiple imaging, the source side is an array source (primary, down-going wavefield or receiver ghost). So we have 3 types of multiple imaging:

Source side is primary, Receiver side is multiples from SRME

Source side is Down-going wavefield, Receiver side is Up-going wavefield

Source side is receiver ghost wavefield, Receiver side is deghosted wavefield.  It is similar to Up-Down multiple imaging.



Imaging with Multiples on Single Sensor Data

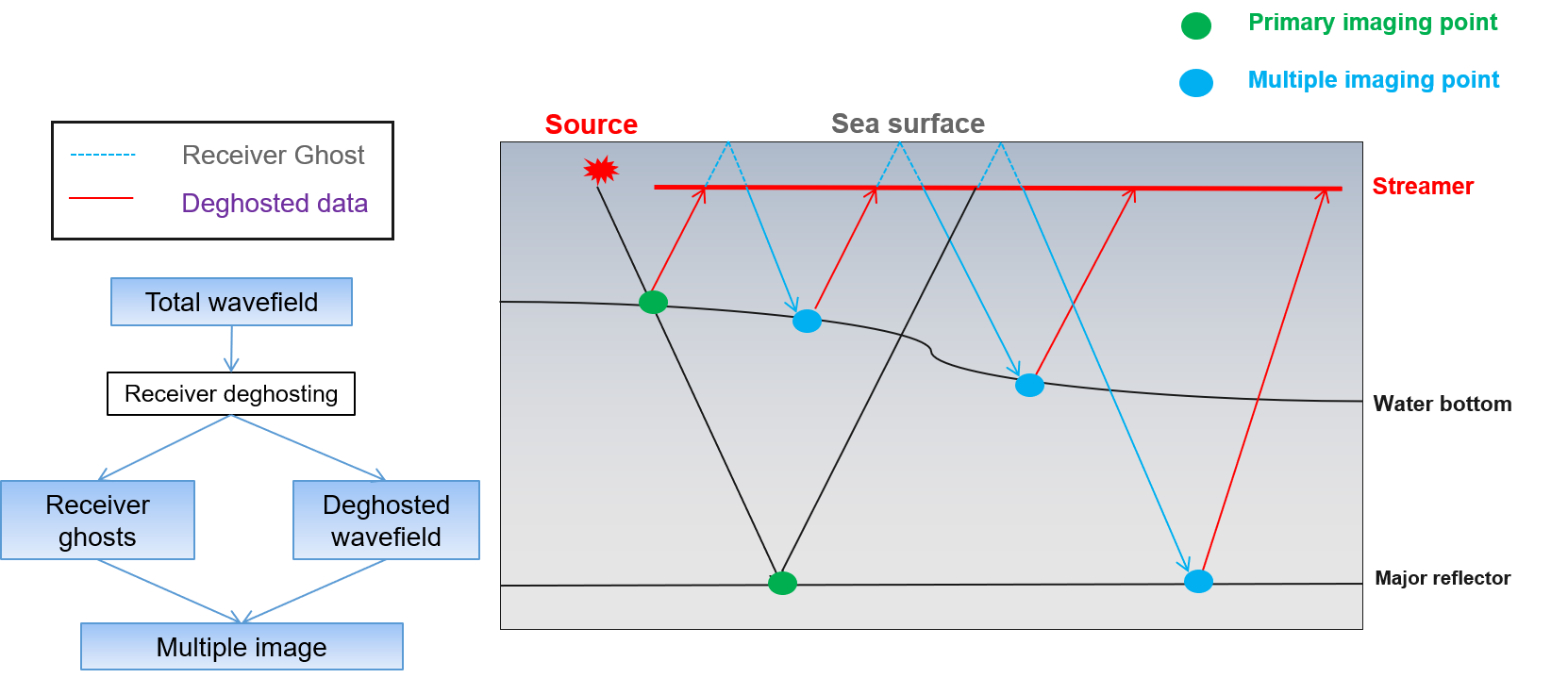

diagram imaging with mult


Imaging with Multiples - depth slice 800m

Move the Slider Left or Right
to Visualize the Images

Got it

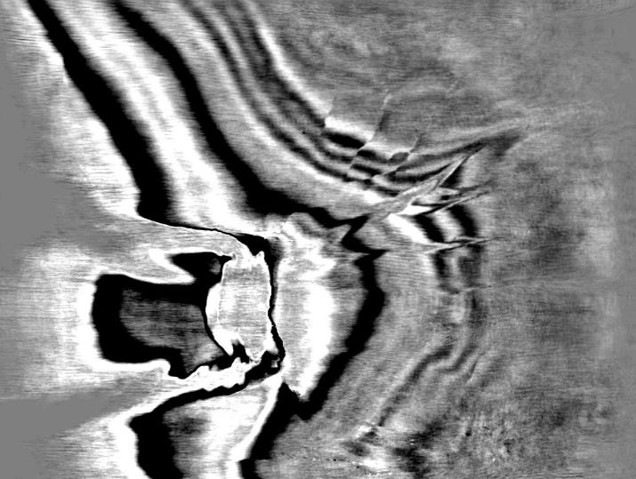

image using mult
Image using multiples

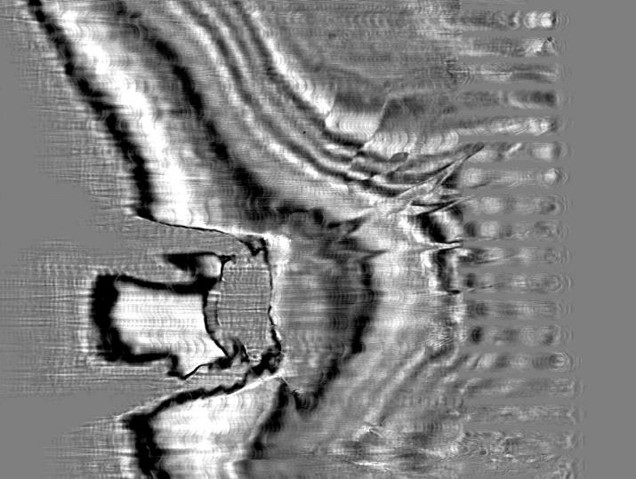

Image using prim
Image using primaries


Inline: Image Using Primaries

Move the Slider Left or Right
to Visualize the Images

Got it

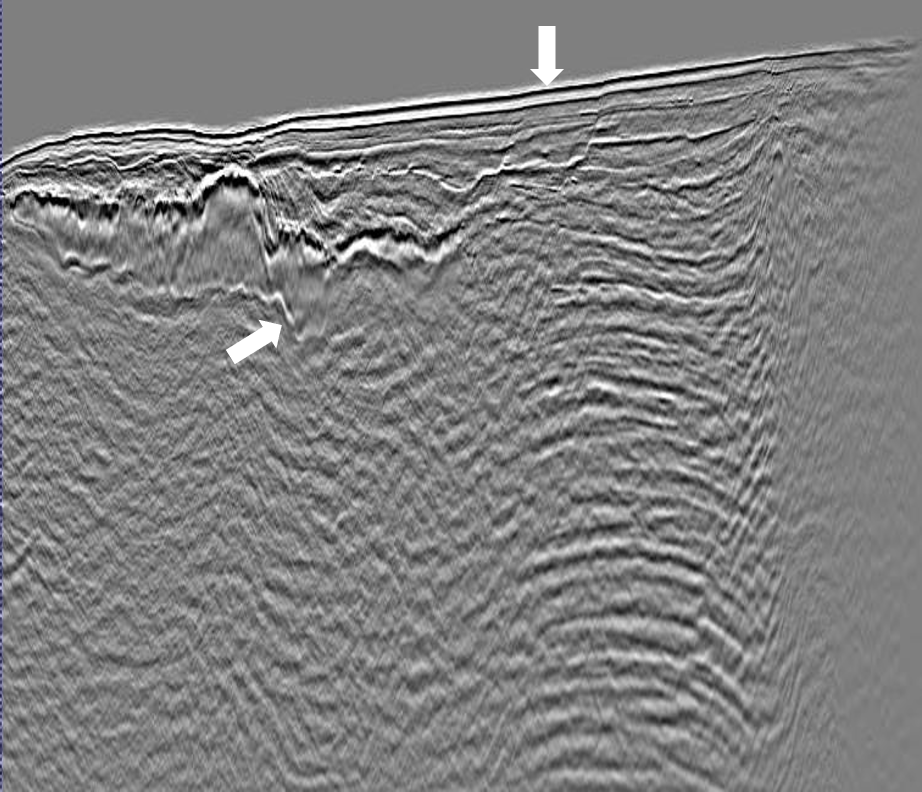

LSRTM mult
Image using multiples

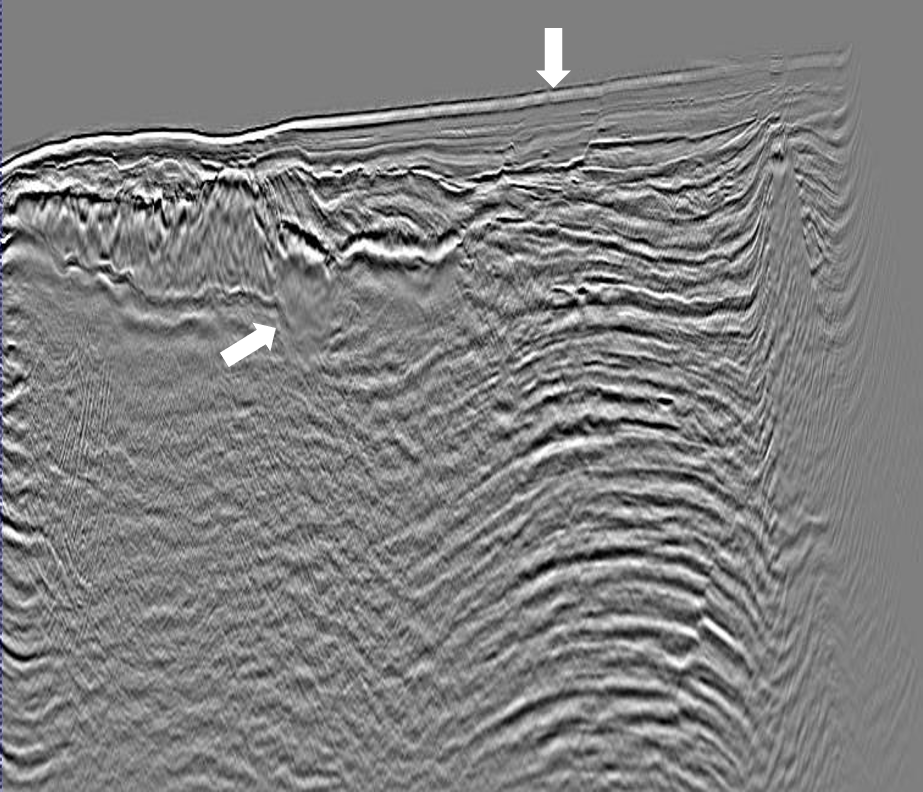

LSRTM
Image using primaries


Imaging with Multiples – crossline display

Move the Slider Left or Right
to Visualize the Images

Got it

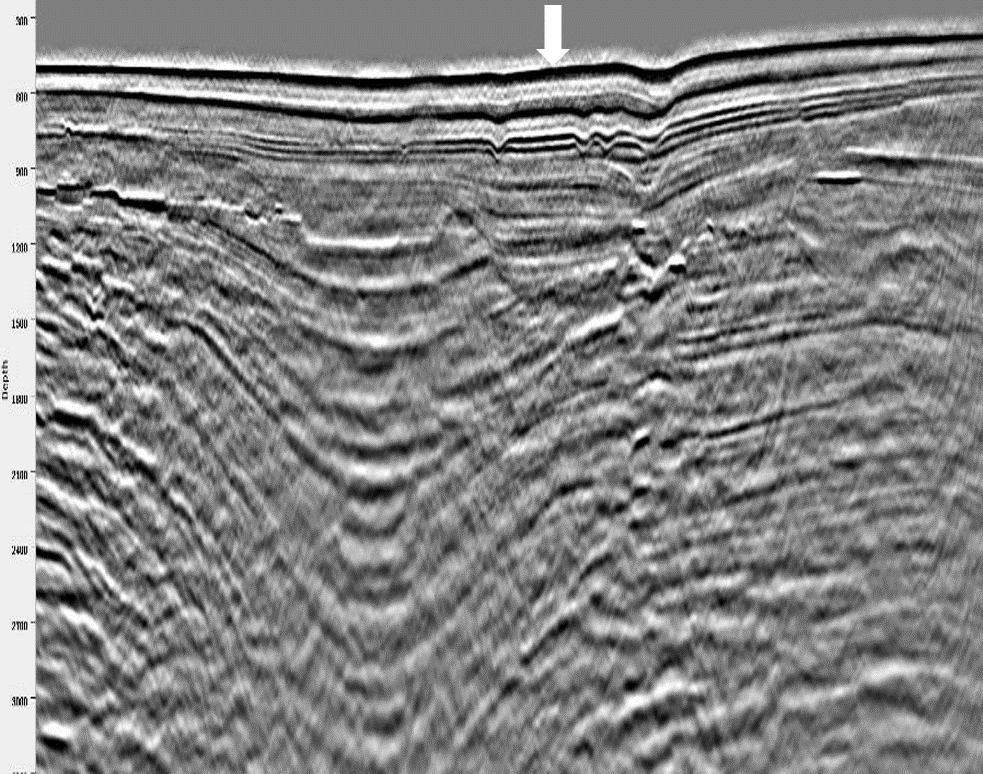

crossline2
Image using multiples

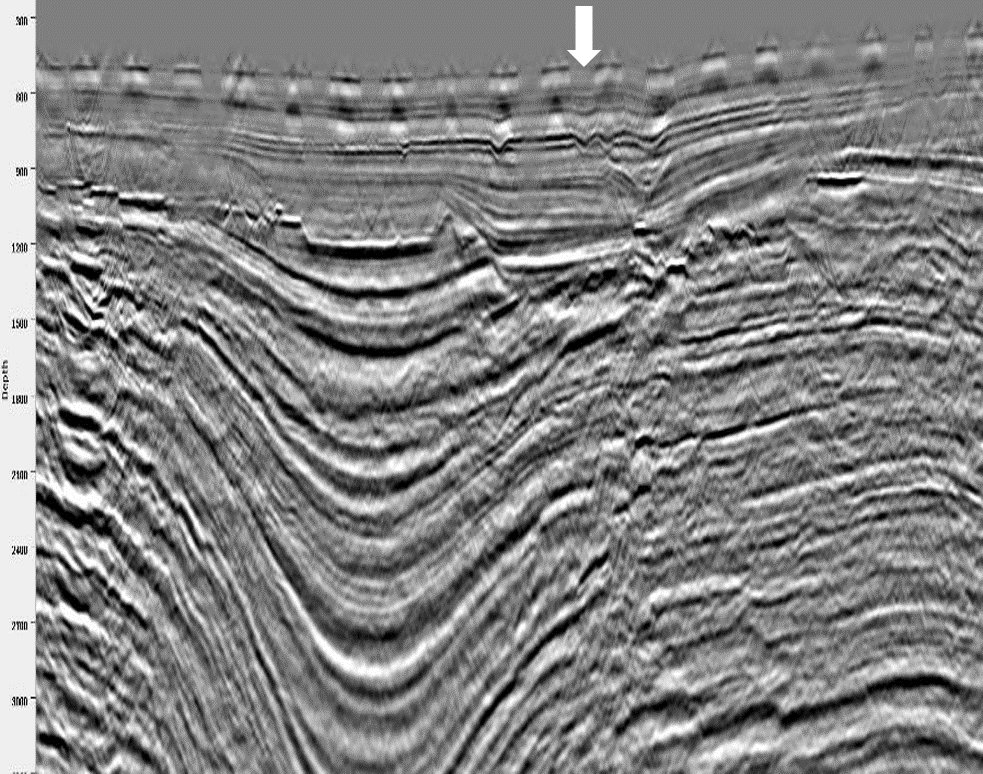

crossline-1
Image using primaries
