A Proper MMV Plan Ensures Confidence and Value in Permanent Carbon Storage

First Published: AAPG Explorer - April 2026, by Kristian B. Brandsegg, Sougata Halder, Allan McKay, Gunhild Myhr (TGS)

Why MMV Matters in Permanent Carbon Storage?

Meeting global climate goals will require not only rapid emissions reductions but also the large-scale deployment of carbon capture and storage (CCS). Recent studies indicate that this effort depends on having mature, proven carbon storage sites ready to operate at an industrial scale. Global emissions remain high (about 40 Gtpa CO2 in 2025), but still only 50 Mtpa of it (=0,05 Gtpa) are captured globally, as indicated by the Global CCS Institute’s 2025 status report. To close this gap, the world must accelerate the development and validation of geologically secure storage sites—depleted hydrocarbon reservoirs and saline aquifers—capable of safely and permanently containing CO₂. Mature storage infrastructure is therefore not optional; it is a foundational requirement for achieving net zero emissions this century.

A crucial part of the development plan for a CO2 storage site is the formulation of the measurement, monitoring, and verification (MMV) plan. A risk-based approach is recommended whilst ensuring the regulatory and societal requirements are met to enable verification of containment of the CO2 and conformance of the storage site to expected behavior e.g. the actual spatio-temporal evolution of the CO2 plume is consistent with model predictions. As carbon capture and storage (CCS) moves from pilot projects to large-scale deployment, MMV has become the cornerstone of trust in the entire value chain: regulators require it, investors depend on it, and society ultimately measures CCS success by it.

MMV provides the evidence that injected CO₂ behaves as predicted, remains contained within the storage complex, and poses no unacceptable risk to people or the environment. In practice, this means combining robust subsurface characterization, fit-for-purpose monitoring technologies, and transparent data management over decades of operation and post-closure stewardship. For TGS, MMV is not a single technology or survey. It is a life-of-field data challenge. One that demands integration across geoscience, engineering, and digital domains.

From Characterization to Conformance

Every successful carbon storage project to date demonstrates that an effective MMV program begins well before the first ton of CO₂ is injected, making a robust baseline understanding non-negotiable. Effective, but practical and economic, monitoring of CO₂ storage sites is a critical part of ensuring that CO₂ is safely stored, legislative requirements are met and public confidence in CCS is gained and maintained. A defensible MMV plan relies on deep knowledge of storage site architecture and capacity, seal integrity and fault behavior, the condition of legacy wells and potential leakage pathways, and the expected geomechanical response to pressure and stress changes within both the storage complex and its seals. TGS addresses this challenge by leveraging the world’s largest multi-client subsurface data library (Figure 1), integrating seismic, well, geological, and production data to support screening, site selection, and risk assessment at both regional (storage‑complex) and prospect scale.

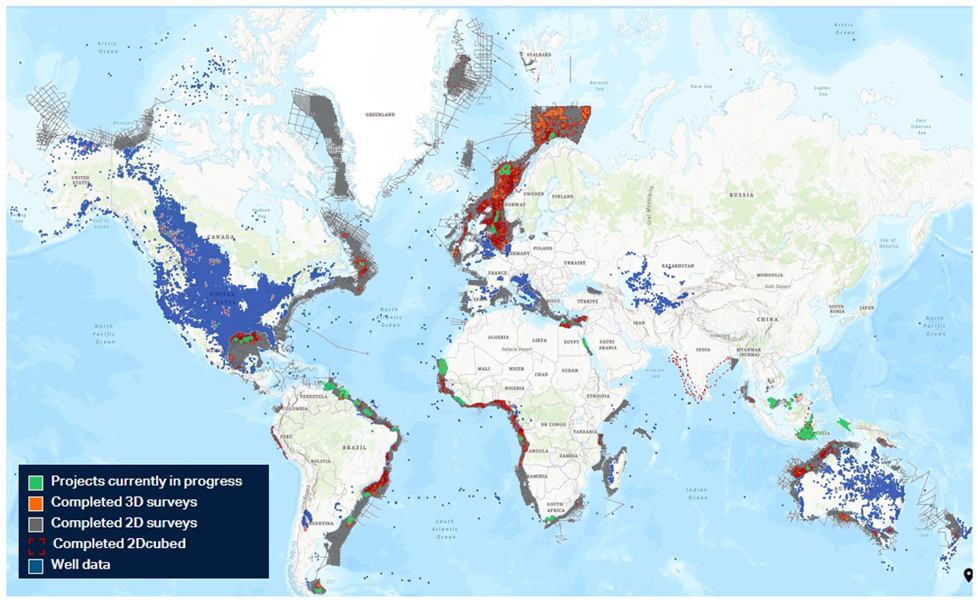

Figure 1. The global multi-client library of TGS is well-suited for screening and mapping carbon storage near emitting CO₂ sites around the world.

Establishing a strong regional context is essential because carbon storage sites do not function as isolated subsurface features, unlike many oil or gas accumulations. Understanding structural connectivity, potential plume migration pathways, and the geometry of the broader containment system significantly reduces uncertainty prior to injection. This holistic characterization enables operators to progress confidently from initial site appraisal to development of risk-focused monitoring planning for long-term conformance monitoring, ensuring that the storage complex behaves predictably and remains secure throughout the project lifecycle.

Designing Risk-Based MMV Programs

Modern CCS regulations emphasize risk-based, site-specific MMV programs rather than one-size-fits-all monitoring, ensuring that effort is concentrated where it delivers the most value over time. From a TGS perspective, this approach includes identifying credible containment and conformance risks, using a robust high-resolution baseline seismic survey, mapping those risks to the appropriate monitoring domains, and selecting technologies that can evolve as the project progresses. This philosophy, exemplified by Figure 2 from the Endurance site in the UK, enables MMV planning to stay adaptive and scalable, allowing monitoring intensity to adjust as subsurface understanding improves and operational phases change, according to a recent report by the U.K. Department for Business, Energy & Industrial Strategy (BEIS). The Northern Endurance Partnership has carried out detailed 3D baseline surveys prior to injection as part of their project development MMV plan (Figure 3). Another well-documented example in the industry is the monitoring of the Sleipner CO2 injection.

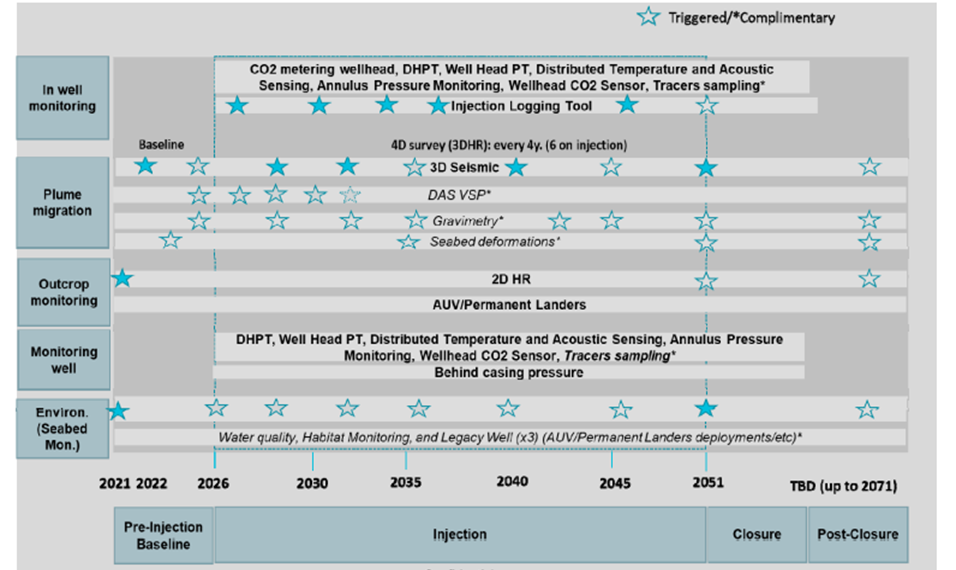

Figure 2. The MMV plan of Endurance in UK is an example of the integration of multiple tools to gain optimal insight of the life-span of the carbon storage site. (Source: BEIS)

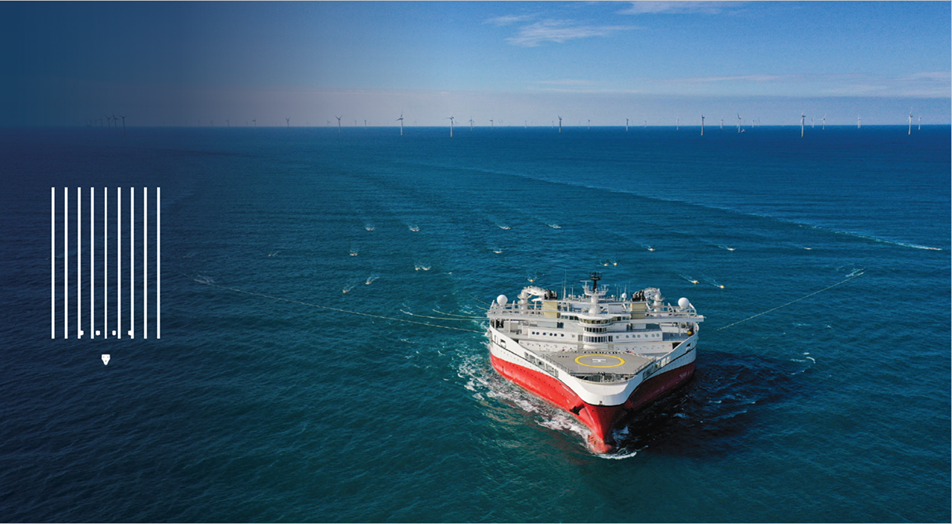

 Figure 3. Ramform Hyperion acquiring the high-resolution CCS development survey for the Northern Endurance Partnership offshore UK in 2022. The tailored acquisition configuration is shown graphically on the left side of the figure.

Seismic at the Core of Subsurface Monitoring

Time-lapse (4D) seismic remains the most effective method for tracking plume migration and pressure evolution at reservoir scale over time. Recent advances in acquisition and imaging—especially broadband acquisition and elastic full‑waveform inversion—have markedly increased sensitivity to CO₂-related changes, enabling clearer, more reliable monitoring of subsurface behavior.

TGS draws decades of experience across oil and gas, carbon storage, and wind to deliver high-quality baseline seismic survey design, repeatability optimization, and high-resolution 4D processing and interpretation. By integrating ocean‑bottom nodes, Distributed Acoustic Sensing, microseismic monitoring, and conventional towed‑streamer data, it is possible to tailor monitoring programs to the customer’s needs—balancing cost, environmental footprint, and detection thresholds for optimal CCS performance assurance (Figure 4).

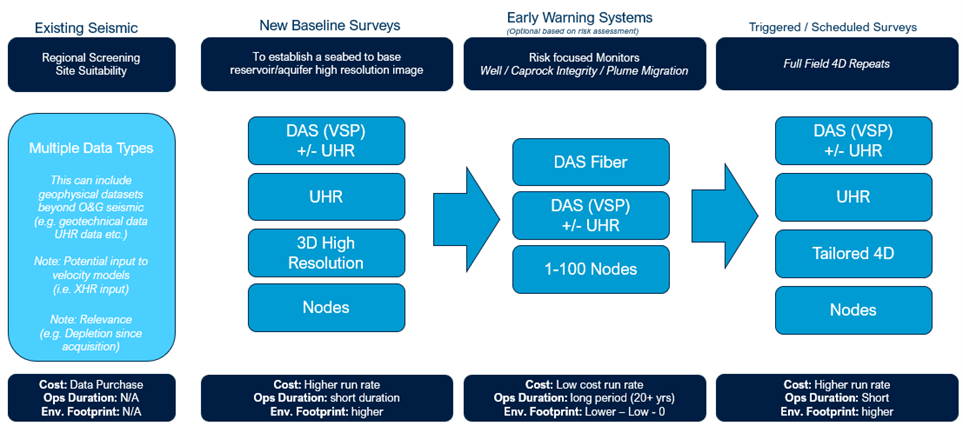

Figure 4. The CO2 storage screening and monitoring framework relies on seismic data and integrates with other tools.

Beyond Seismic: A Multi-Domain View

Effective MMV extends well beyond the storage formation and requires a multi-domain approach to fully understand storage performance and environmental assurance over time. Key monitoring domains typically include the deep geosphere, where plume conformance and potential fault activation are evaluated; the shallow subsurface, where gas migration pathways and pressure anomalies may be detected; the seabed and water column, where monitoring focuses on identifying any potential seepage; and both active and legacy wells, where integrity must be continuously assessed.

TGS supports comprehensive MMV design by integrating seismic data with geological models, well information, and a range of external monitoring inputs, creating a unified interpretation framework that delivers consistent insights across all domains.

Digital Enablement and Data Transparency

MMV programs generate enormous volumes of data over long project lifecycles. Transforming that data into actionable insight and auditable evidence requires more than interpretation expertise alone. TGS is developing digital solutions that seamlessly link subsurface monitoring data with operational and reporting workflows to support near‑real‑time decision‑making, ensure full traceability across the CCS value chain, and streamline regulatory reporting and verification. Through initiatives such as carbon tracking and integrated data platforms, CO₂ can be traced from its emission source to its final permanent storage location, strengthening confidence in reported sequestration volumes. The Prediktor Data Gateway software is already a cornerstone of the Northern Lights project in Norway, enabling continuous performance tracking of CO₂ from transport vessels through the Øygarden terminal and pipeline to permanent storage in the saline aquifer.

MMV Across the CCS Lifecycle

TGS’ approach emphasizes continuity of data and interpretation across these phases to reduce project phase handover risks, preserving project knowledge and ultimately saving both capital and operational costs (Figure 5).

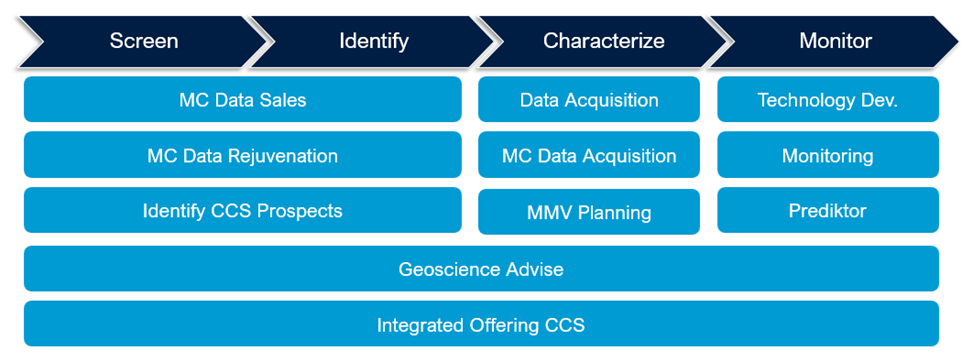

Figure 5. TGS position spans from screening stage through monitoring stage of CCS project life-cycle.

The TGS Perspective

Some see MMV as a regulatory obligation. TGS sees it as a value creation opportunity. This is well supported by the technological innovations implemented on Sleipner (Figure 6).

A properly designed MMV program includes:

• Reduction in subsurface uncertainty of CO2 movement and storage

• Enabling optimized injection strategies for operational efficiency and safety

• Lower long-term monitoring costs

• Build public and stakeholder trust from pre-injection through closure and transfer

By combining global subsurface data coverage, advanced seismic technologies, and digital integration, TGS positions MMV as a strategic enabler for scalable CCS, not just a compliance exercise.

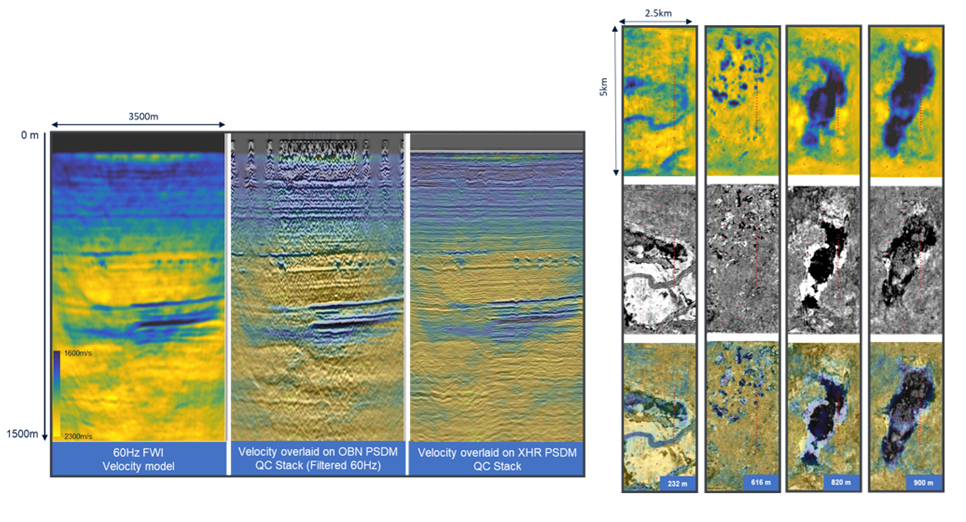

 Figure 6. The Sleipner Field CCS project has been a massive technology test site following nearly 30 years of offshore CO2 injection. These data examples are from a recent project where the simultaneous acquisition of 3D ultra-high-resolution data using short streamers and sparse ocean-bottom nodes was undertaken to demonstrate the potential of this approach as a cost-effective monitoring method. The velocity Model from Full Waveform Inversion using the sparse OBN is shown in color, whilst the reflectivity from Pre-Stack Depth Migration is shown in grayscale as both vertical sections and depth slices.

As CCS accelerates toward gigaton-scale deployment, confidence in storage permanence will define success. A proper MMV plan is how confidence is earned—measured, monitored, and verified. TGS provides advanced data and intelligence to companies and organizations involved in energy exploration, production, and carbon storage. With the industry’s largest subsurface data library and decades of geoscience expertise, TGS supports informed decision-making across the CCS lifecycle.
