Leverage the full potential of TGS ocean bottom node (OBN) technology to capture full-azimuth, four-component (4C) seismic data for informed, high-impact decisions. Our modular systems and automated handling technologies enable safe, efficient and high-quality data acquisition. As a trusted provider of ocean bottom seismic solutions, TGS brings precision and reliability to every project.

TGS OBN NOdes Build - web crop

Proven OBN Technology

TGS ocean bottom node (OBN) systems are engineered to perform in the world’s most demanding offshore environments. From ultra-deepwater to shallow transition zones, sub-salt, and infrastructure-dense areas, our technology delivers the high-quality data needed to support confident decisions throughout the reservoir lifecycle.

Our equipment combines modular, energy-efficient designs with automated handling systems that improve safety, streamline logistics and reduce project timelines. Inspired by advances in mobile and defense miniaturization, we continue to evolve our technology to be lighter, more efficient and easier to deploy. Each system is backed by decades of operational experience and designed to meet the specific technical and environmental challenges of your project. The result is reliable, high-value seismic data you can trust.

Our Nodes

TGS offers a suite of ocean bottom node systems designed for a wide range of water depths, deployment methods and operational requirements. Each node is engineered for reliability, efficiency and adaptability across complex offshore environments.

  • MASS III
  • ZXPLORe
  • Z700®

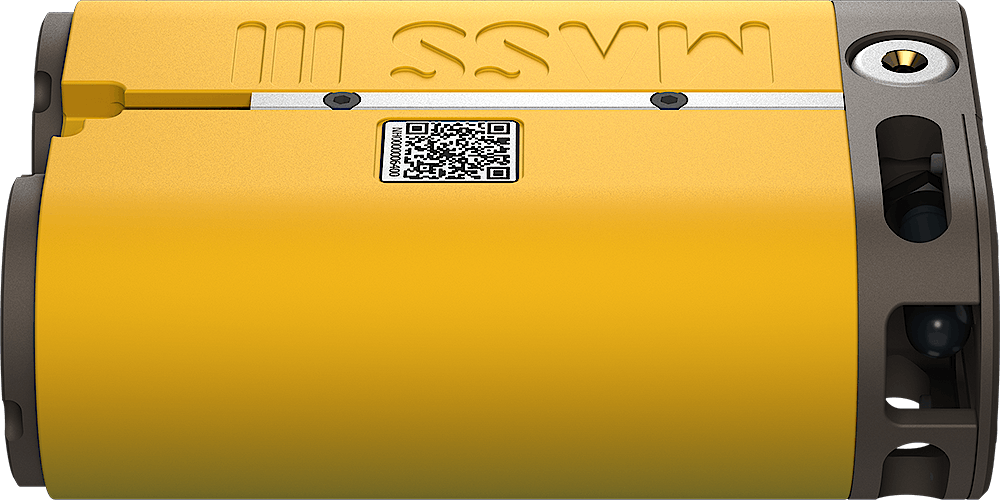

MASS III

TGS-MASS III

Enhanced Flexibility and Efficiency

The MASS III system combines an ultra-compact design with extended recording capabilities and a fully programmable CPU, offering unmatched flexibility in the field. Its robotic handling system reduces manual intervention and lowers failure rates while improving operational safety. MASS III is well suited for projects that demand high logistical efficiency and dependable, repeatable performance.

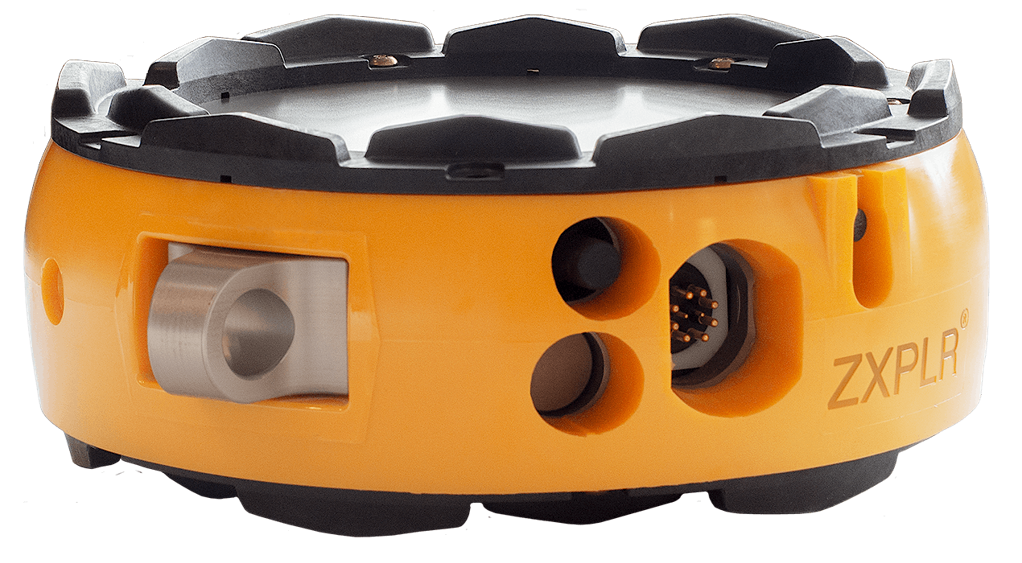

ZXPLORe

TGS_ZXPLR

Versatile Deep and Shallow Water System

The ZXPLORe system delivers adaptable node deployment for both deep and shallow water environments. It supports deployment via passive rope or ROV and includes a high-speed loader (HSL) that enhances turnaround time in deepwater operations. This system is ideal for projects with diverse bathymetry and environmental constraints.

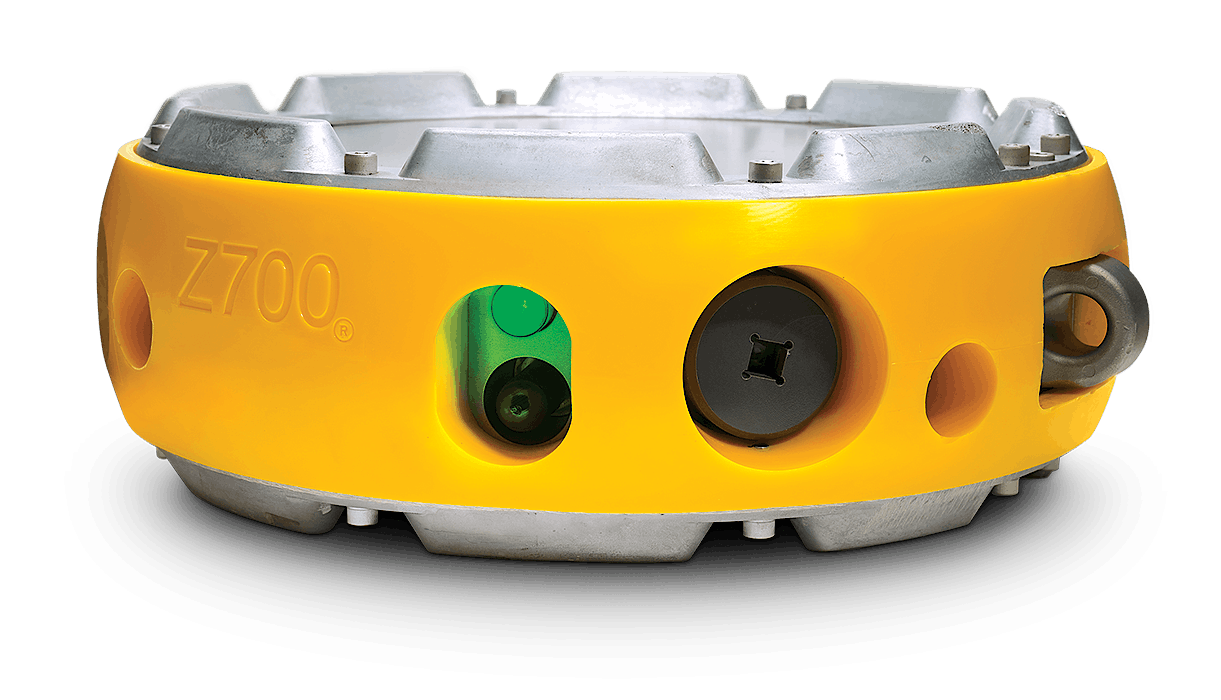

Z700®

TGS-Z700

Life of Reservoir Efficiency

Designed for water depths up to 700 meters, the Z700 system features automated back-deck handling for safe and reliable deployment. It performs well in transition zones, near complex infrastructure and in ecologically sensitive areas. With continuous data recording and minimal HSE impact, the Z700 supports detailed imaging throughout the reservoir lifecycle.

A Flexible Solution for All Needs

TGS OBN technology supports safe, efficient and high-quality seismic acquisition for a range of offshore goals, from early exploration and development planning to carbon storage monitoring and reservoir management. With a focus on flexibility, we align systems and operations to your timeline, environment and data needs. This adaptability makes TGS a reliable partner for any OBN campaign, regardless of complexity.

MASS III ZXPLORe Z700®
Proven track record
Fully autonomous
Records continuously, no troubleshooting required
Operational depth 3,000m 4,000m 700m
Battery life Up to 150 days Up to 135 days Up to 60 days

Adaptable Deployment Options

TGS offers multiple node deployment methods to suit a wide range of operational needs and environments. Our systems support nodes-on-a-rope (NOAR), remotely operated vehicle (ROV), and node-drop configurations, providing flexibility for both deep and shallow water campaigns.

ROV deployment is especially effective for 4D reservoir monitoring, where repeatability is critical. The compact node design allows for more nodes per skid, improving efficiency and reducing downtime. Combined with scalable, automated handling systems and hands-free data download, this approach enables faster, safer operations with greater consistency.

TGS-OBN-ROV

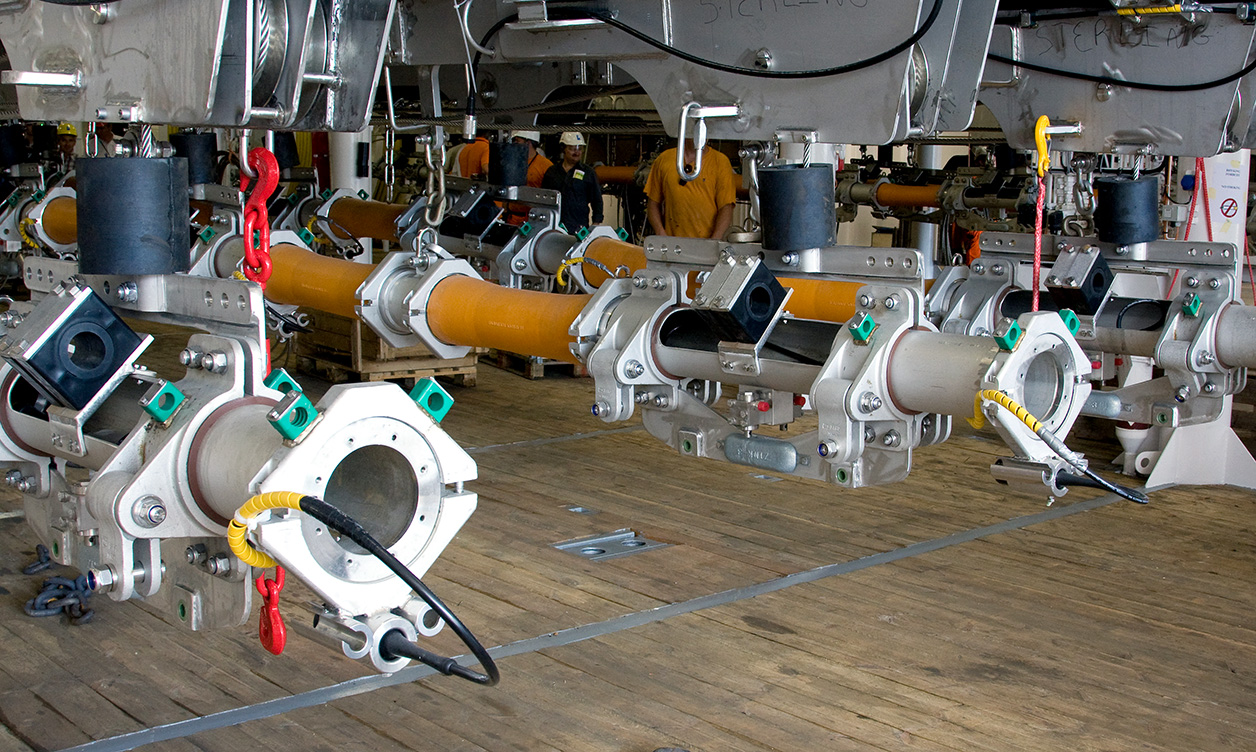

Backdeck Source Air Gun - web crop

Portable Source Solutions

TGS extends its acquisition capabilities with advanced portable source technologies designed for consistent and repeatable seismic input. Since 2003, we have supported permanent reservoir monitoring (PRM) through an end-to-end approach that includes system design, deployment and operation. Our expertise in PRM and containerized source systems helps reduce variability across surveys and ensures a stable energy source for accurate 4D imaging, even in technically challenging conditions.

Modular Designs

TGS ocean bottom node systems are modular by design, supporting project scalability and deployment anywhere in the world. This flexibility helps reduce acquisition time and costs while adapting to a variety of technical and environmental conditions. By combining technical precision with operational agility, we deliver dependable results across the full spectrum of seismic acquisition needs.

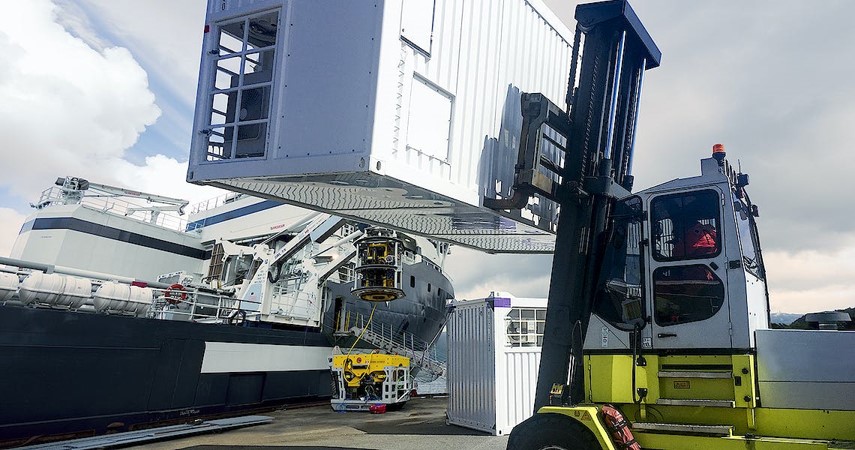

TGS-modular-mobility

Let’s Discuss Your Acquisition Needs

With the industry’s most diverse fleet and integrated expertise, from survey design and acquisition to seismic data imaging, TGS delivers trusted, tailored solutions for complex exploration challenges.

Learn More About Our Fleet

Discover the capabilities, configurations and proven performance of our diverse fleet. Built for reliability and efficiency, our vessels are ready to meet your exploration needs, anywhere in the world.

Start the Conversation

Every project is different. Talk to a TGS expert about your specific acquisition requirements. With decades of trusted experience and integrated capabilities, we’ll help you design the right solution from the start.
