Q Tomography / Q Migration

Q tomography is an extension of 3D migration-based tomography

TGS has developed a frequency domain tomographic inversion to estimate frequency dependent energy attenuation by using prestack depth migration common image gathers (CIGs).

The correction of migration stretching is a key to improved results. TGS can run Q-migrations using Kirchhoff, Beam, and RTM algorithms.

TGS has developed a frequency domain tomographic inversion to estimate frequency dependent energy attenuation by using prestack depth migration common image gathers (CIGs). The frequency dependent attenuation is estimated from the centroid frequency difference for reflections in CIGs. Migration stretch and ghost effects are taken into account to get correct measurements of frequency. This method makes corrections for these factors to obtain the correct frequency difference, utilizes the actual ray path and avoids using amplitude information. It is relatively insensitive to some amplitude loss factors, such as geometric spreading, reflection and transmission loss, source and receiver radiation patterns.

Q Migration is specifically modified to apply the attenuation correction calculated by Q Tomography.

Move the Slider Left or Right
to Visualize the Images

Got it
Nessie after

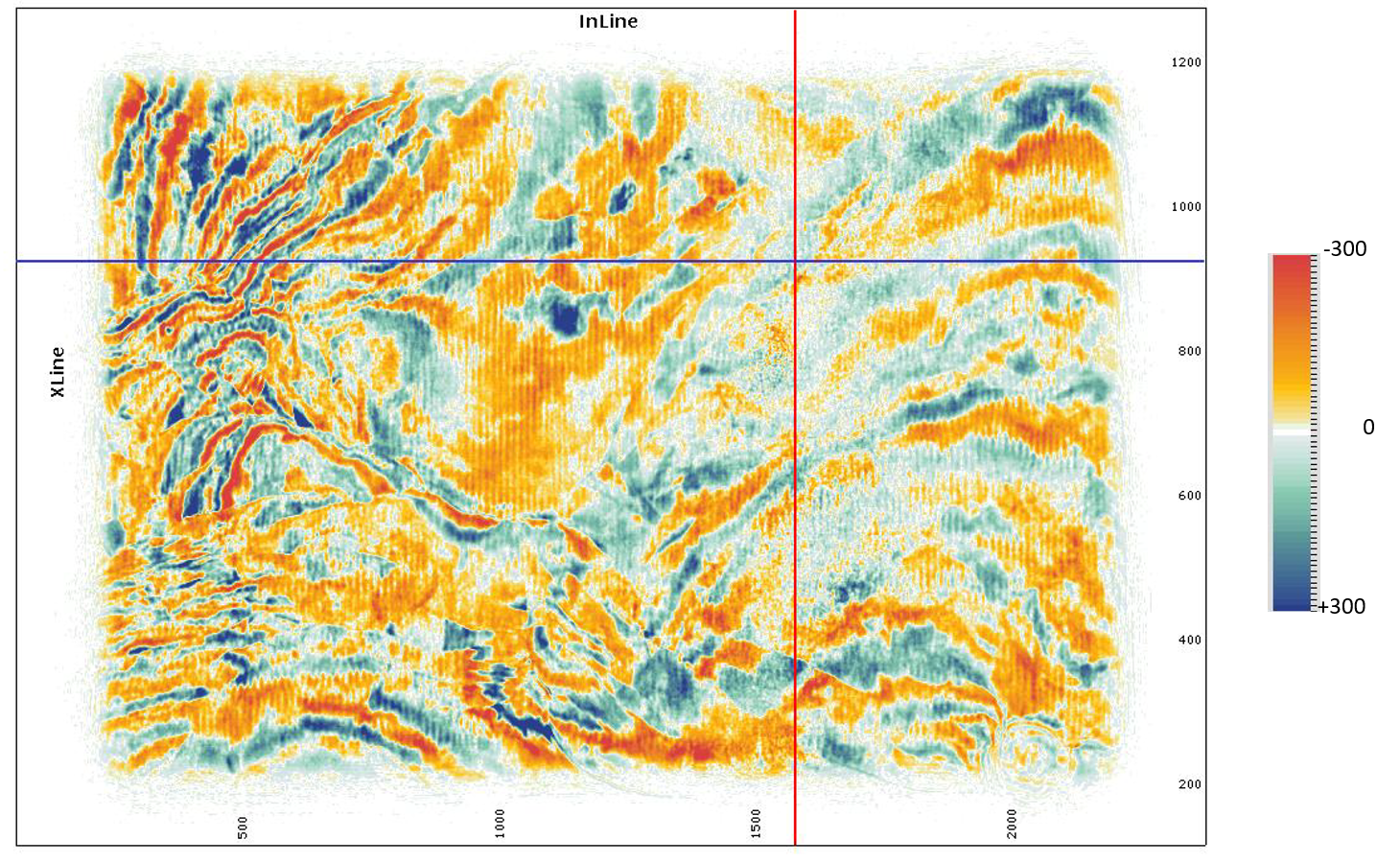

Nessie Zslice at 2000 m – Q-KDMig After Q
Nessie Z slice

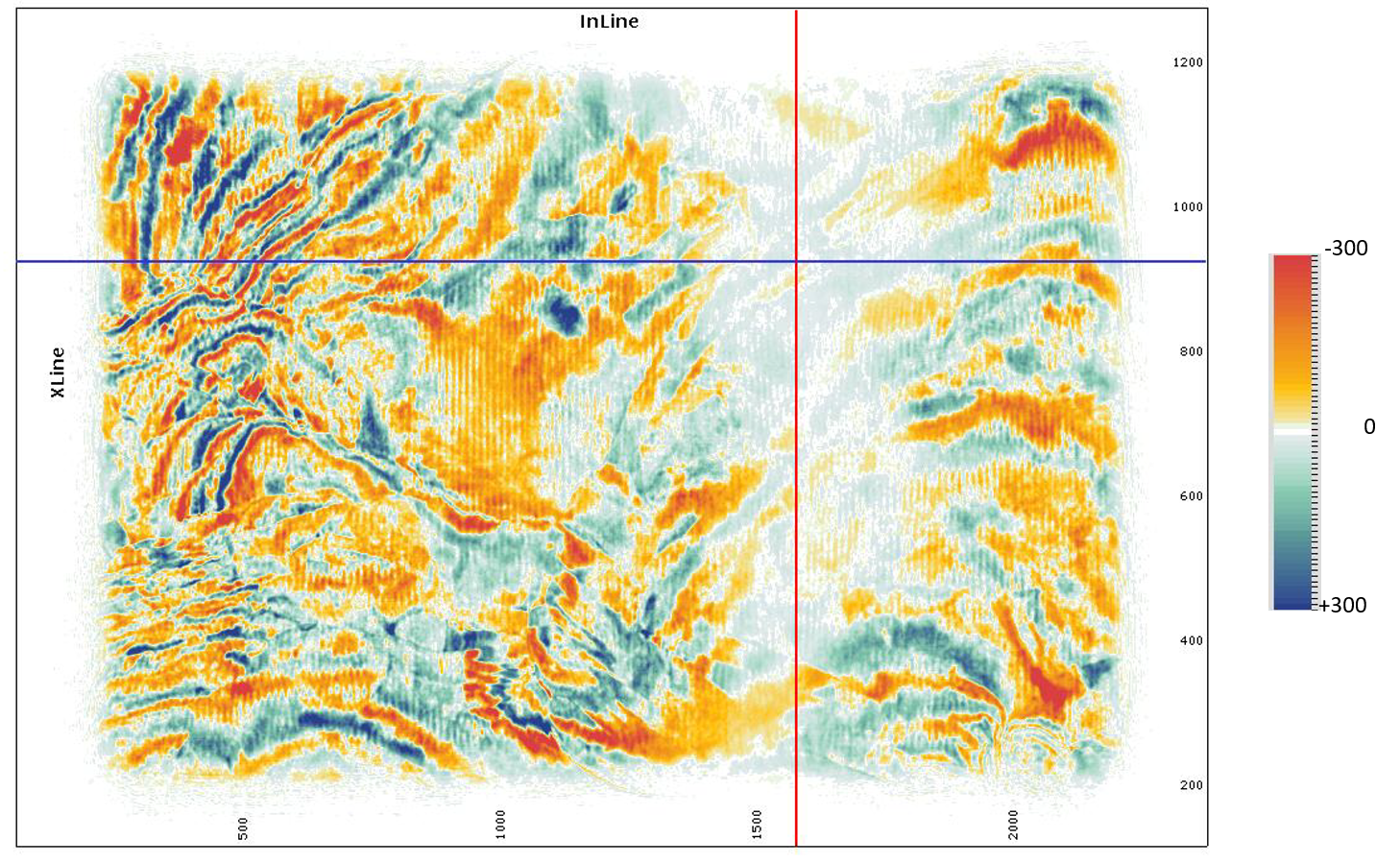

Nessie Zslice at 2000 m – KDMig Before Q

Move the Slider Left or Right
to Visualize the Images

Got it
AVO after-1

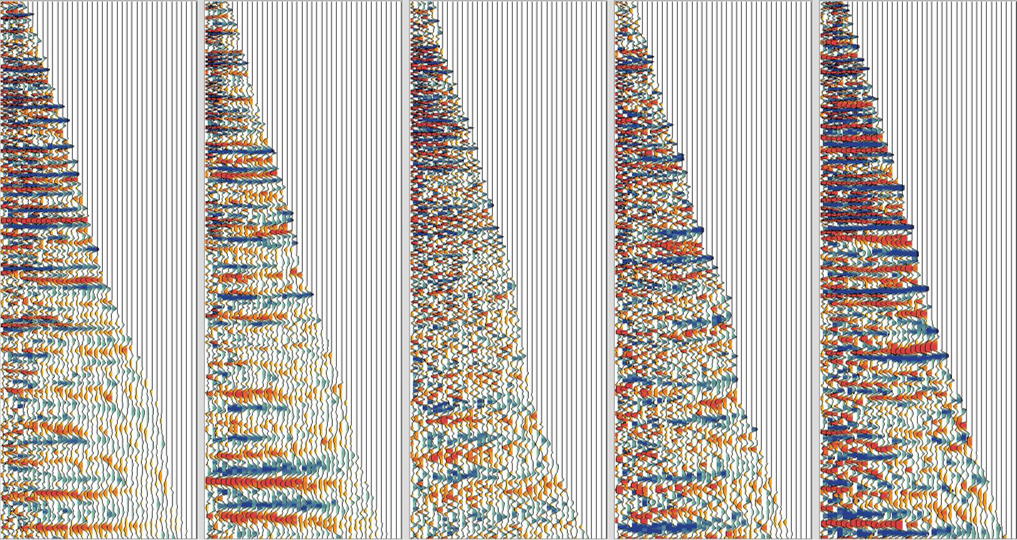

AVO for Q KDMig After Q
AVO

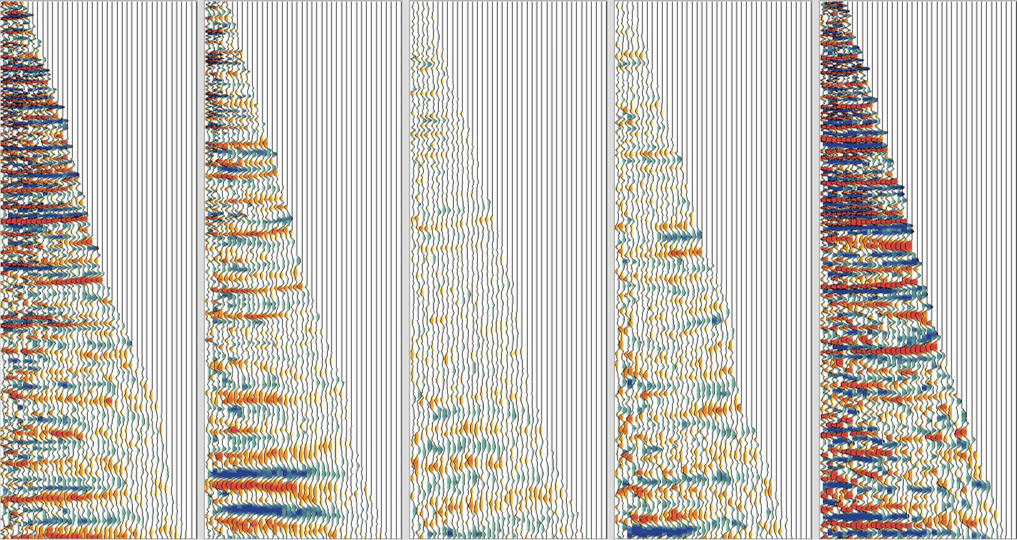

AVO for KDMig Before Q
